| Weightech ID – Código Weightech | BPC12X [501895-503765-503766-503767] | ||||||||
|---|---|---|---|---|---|---|---|---|---|

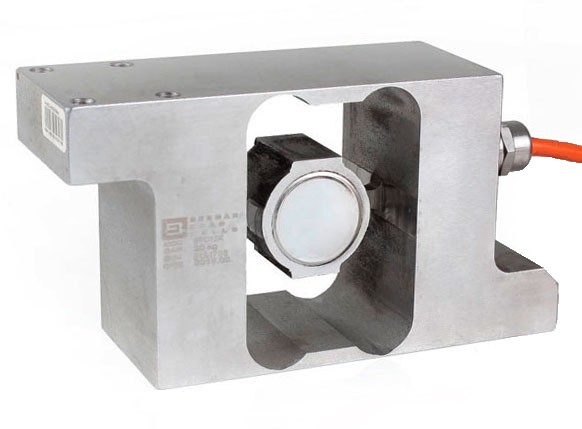

| Product name – Nome do Produto | BPC12X | ||||||||
| Manufacturer – Fabricante | Berman Load Cells | ||||||||
| Load cell type – Tipo da célula | Single Point | ||||||||
| Application – Aplicações | Checkweigher | ||||||||
| Signal type – Tipo de sinal | Analog | ||||||||
| Accuracy Class – Classe de precisão | C3 | ||||||||
| Sensitivity (mV/V) – Sensitividade (mV/V) | 1.6 ± 0.2 (20kg) 2.0 ± 0.2 (50 — 150kg) | ||||||||
| Creep (30 min) | ± 0.03%F.S | ||||||||
| Zero Balance (%F.S) – Balanceamento de Zero (%C.n) | ± 1 %F.S | ||||||||
| Temp. Compensation on Zero – Comp. Temperatura em zero | ± 0,02%F.S/10°C | ||||||||
| Temp. Compensation on Spam – Comp. Temperatura em spam | ± 0,02%F.S/10°C | ||||||||
| Input Resistance – Impedância de entrada | 400 ± 20Ω | ||||||||
| Output impedance – Impedância de saída | 352 ± 3Ω | ||||||||
| Insulation resistance – Resistência de isolamento | ≥ 5000 MΩ | ||||||||
| Nominal temp. range (°C) – Faixa de temp. nominal (°C) | -10 — 40 | ||||||||
| Operating Temp. Range (°C) – Faixa de temperatura de serviço (°C) | -30 — 70 | ||||||||
| Safe Load Limit (%F.S) – Limite de sobrecarga segura (%Cn) | 150 | ||||||||
| Lateral Load Limit (%F.S) – Limite de carga lateral (% Cn) | 300 | ||||||||
| Recommend Excitation – Tensão recomendada de excitação | 5 — 12 VDC | ||||||||
| Maximum Excitation – Tensão máxima de excitação | 15 VDC | ||||||||
| Tightening torque – Torque de aperto | 14 N.m | ||||||||
| Protection Class – Classe de proteção | IP68 | ||||||||
| Construction – Material | Stainless steel – Aço inoxidável | ||||||||
| Maximum platform size – Tamanho máx. da plataforma | 400x500mm | ||||||||
| Type of cable -Tipo de cabo | Gray (4 wires) – Length: 3m, Diameter: Ø5mm | Orange (4 wires) – Length: 5m, Diameter: Ø5mm
|
